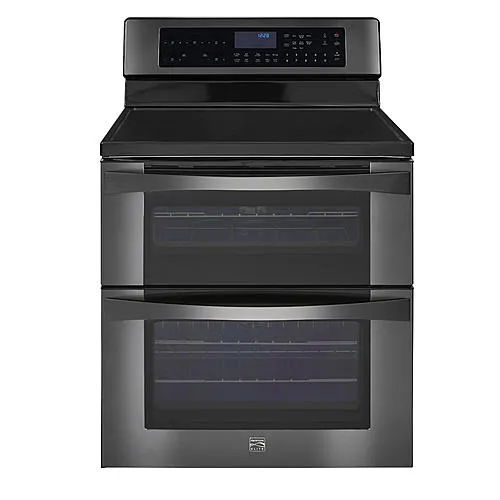

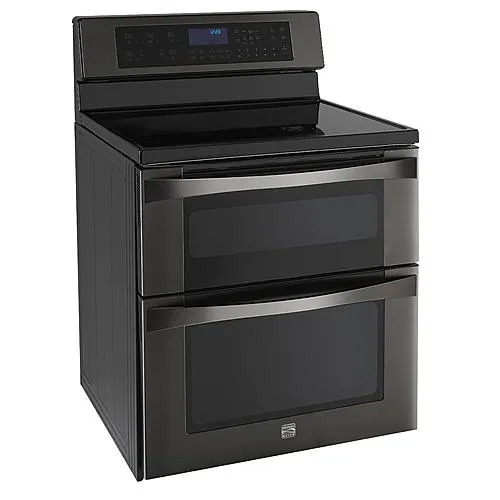

Kenmore Elite 96047 6.7 cu. ft. Electric Double Oven Range w/ True Convection – Black Stainless

Item # 02296047000P Model # 96047
Buy on buy on Find a store

Maximum Cooking Capacity

From the appetizer course straight through to dessert, the Kenmore Elite electric double oven range has you covered when it comes to cooking large meals for your family. 2 spacious ovens and a generous cooktop with 5 radiant elements lets you bake, broil, boil and fry a variety of dishes at once. Electronic touch display controls make it easy to change temperatures and alter your cooking settings with the touch of a button. Lo Temp Clean technology cleans your oven in a quick 20 minutes, so you'll spend less time tidying in the kitchen and more time enjoying the company of your dinner guests.

Get Cooking

  • Speed Broil uses an infrared element that heats up extremely fast to give you the seared flavor of grilling without preheating
  • True Convection Cooking spreads heat evenly throughout the lower oven to help bake, brown and broil
  • Convection Roast sears meats and seals in juices for delicious results.

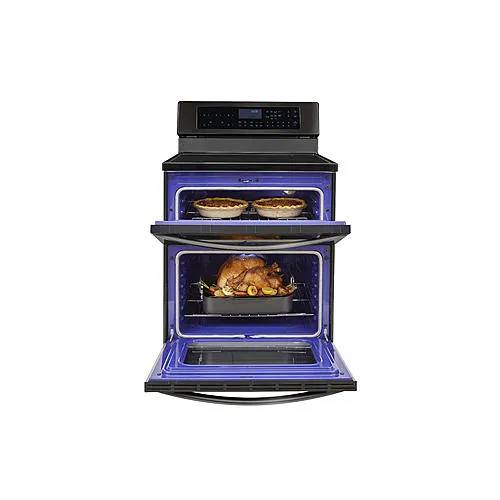

  • Double ovens let you cook multiple dishes at once

Made for Multiple Dish Meals

  • 5 burners give you cooking flexibility

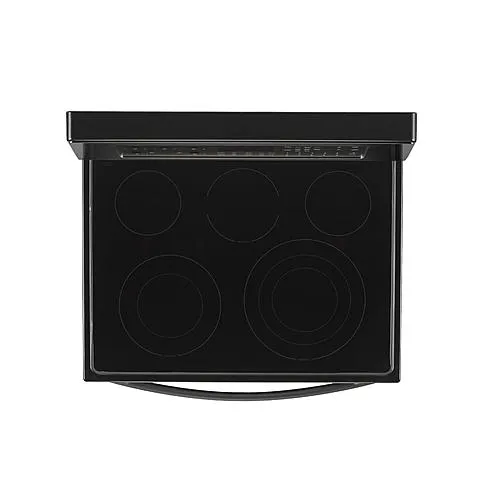

  • Radiant glass cooktop surface is easy to clean and use
  • 6.7 cu. ft. of oven space gives you plenty of room to cook larger family meals

Designed for Convenience

  • Lo Temp Clean functionality makes your oven sparkle and shine without the use of harsh chemicals or high heat
  • Black stainless finish is specially designed to be smudge-and fingerprint-resistant


Width (in.) 29.88
Depth (In.) 25.82
Height (in.) 47.44
Main Oven Interior Dimensions (WxHxD) 24.5x16.31x18.94
Depth with Door Open (in.) 45
Secondary Oven Interior Dimensions (WxHxD) 24.5 x 8.687 x 18.937
Width 30 in. (standard)
Appliance Features:
Oven Cleaning Method Self-cleaning
Range Style Freestanding Ranges
Power & Performance:
Voltage 220/240V
Main Oven Broiler Wattage 3800
Minimum Circuit Rating 40 amps
Main Oven Bake Element Wattage 2500
Main Oven Convection Element Wattage 2000
Secondary Oven Bake Element Wattage 2100
Secondary Oven Broiler Wattage 3200
Secondary Oven Capacity (cu. ft.) 2.3
Weight (lbs.) 212.5
Weight, Shipping 262.6
Sabbath Mode Yes
Control Type Electric
Number of Ovens Double oven
Bake Element Location Beneath oven floor
Secondary Oven Number of Rack Positions 1
Main Oven Broiler Location Top of oven
Main Oven Number of Rack Positions 5
Number of Oven Racks 3
Number Burners 5
Element Configuration LR 6" 1,200W; RR 6" 1,200W; LF 9"/6" 3,200W/1,400W; RF 12"/9"/6" 3,000W/2,200W/1,100W; C 7" 100W
Convection Location(s) Lower
Convection Type Fan w/ Additional Element or Burner
Cooking Surface Electric
Certifications & Ratings:
ADA Compliant No
ANSI Certified No
Secondary Oven Light Standard (incandescent)
Oven Light Standard (incandescent)
Oven Door Window Type Standard
Item Type:
Oven Type Convection
Clock Type Digital
Product Includes:
Power Cord Included No
Color Family Black Stainless
