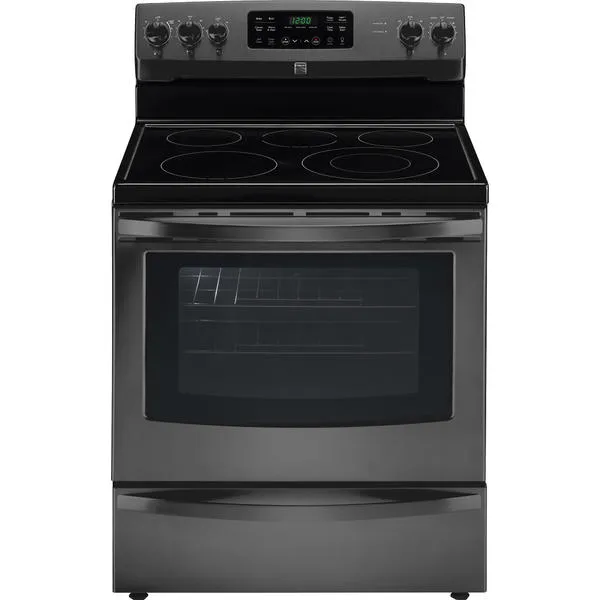

Kenmore 96197  5.4 cu. ft. Electric Range w/ Convection Oven - Black Stainless Steel

Kenmore 96197 5.4 cu. ft. Electric Range w/ Convection Oven - Black Stainless Steel

Item # 02296197000P Model # 96197
Buy on Find a store

Kenmore 5.4 cu. ft. Electric Range - Sleek, Low-Maintenance

This Kenmore 5.4 cu. ft. electric range 9413 offers exceptional features that will save you valuable time while still providing quality meals for your family. The smooth ceramic glass surface displays dual 12/6 elements and a warming zone for maintaining the perfect serving temperature. Bring water to a rapid boil with the 3,200W Turbo Boil heating element which can cut your cooking time in half. This Kenmore electric range with convection oven comes equipped with a fan to evenly distribute heat for perfect baking and browning and a large storage drawer for all your cooking utensils.

Boil, Boil Simmer and Toil
The 3,200 watt Electric Turbo Boil brings pots and kettles to a rapid boil with less wait time.

Even Heating Each Time
The Power Burner Element channels radiant heat to your pots, pans, skillets and griddles, ensuring even searing, browning, boiling and cooking.

Easy to Clean
The ceramic glass cooktop makes it easy to wipe up spills, splatters and spoon drippings while giving your kitchen a sleek and modern look.

Hot Heat Without Hot Spots
Fan convection helps to circulate hot air throughout the oven, eliminating hot spots. Get more even baking, browning and flavor in every dish from this Kenmore range.

Control is at Your Fingertips
Easy Set controls on this Kenmore range make it super simple to set timers, oven temperature and other features so you can spend less time fussing and more time embracing your inner chef.


Width (in.) 29.875
Width 30 in. (standard)
Depth (In.) 28.406
Height (in.) 47.75
Main Oven Interior Dimensions (WxHxD) 24.375" W x 19.75" H x 19.125"D
Depth with Door Open (in.) 48.625
Appliance Features:
Oven Cleaning Method Self-cleaning
Storage Drawer Yes
Range Style Freestanding Ranges
Safety Features Oven control lockout
Power & Performance:
Total Connected Load 13.5 kW @ 240V / 10.5 kW @ 208V
Voltage 220/240V
Main Oven Broiler Wattage 4000
Minimum Circuit Rating 40 amps
Main Oven Bake Element Wattage 3500
Weight (lbs.) 163
Weight, Shipping 178
Control Type Electric
Number of Ovens Single oven
Number of Oven Racks 2
Warming Drawer No
Number Burners 5
Element Configuration 2 - 6" 1200W; 1 - 6" 100W; 1 - 9" 3200W; 1 - 12"/6" dual 3000W
Convection Location(s) None
Convection Type Fan Only Convection
Cooking Surface Electric
Certifications & Ratings:
UL Listed Yes
ADA Compliant No
ANSI Certified No
Oven Light Standard (incandescent)
Oven Door Window Type Extra-large
Item Type:
Oven Type Convection
Clock Type Digital
Product Includes:
Power Cord Included No
Color Family Black Stainless
