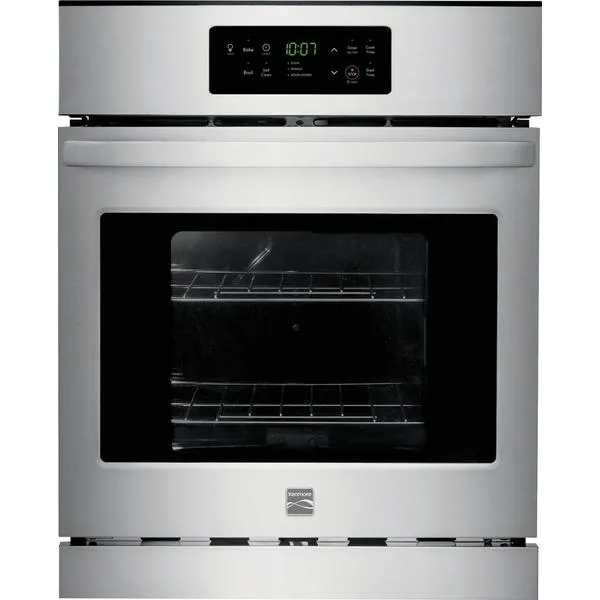

Kenmore 40543 24" Self-Cleaning Electric Wall Oven - Stainless Steel

Kenmore 40543 24" Self-Cleaning Electric Wall Oven - Stainless Steel

Item # A023460893 Model # 40543

Cook Multiple Dishes at Once

From keeping a stack of pizzas toasty to cooking Thanksgiving dinner, the Kenmore self-cleaning electric wall oven lets you bake, roast and broil with precision. Cook with the exact temperatures you need to make all your favorite dishes. Easy-to-use controls help you heat, preheat and monitor food with ease. Handle-style racks give you a more convenient way to remove dishes. A generous 3.3 cu. ft. capacity lets you to cook entrees, sides and appetizers at once.

Easy Cooking

  • Handle-style oven racks slide in and out smoothly, while easily supporting large entrees
  • Extra-large viewing windows let you check baked goods without opening the oven, helping keep temperatures consistent

Superior Essentials

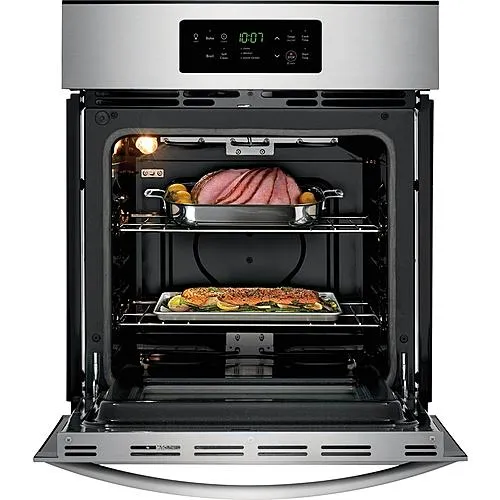

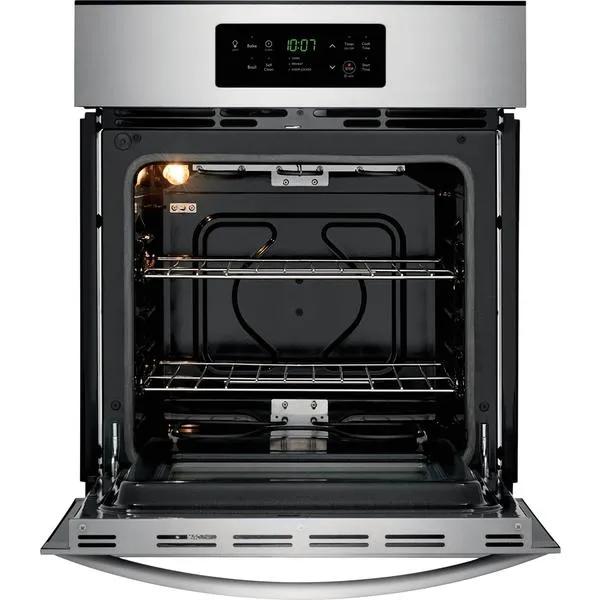

  • 3.3 cu. ft. capacity with 2 oven racks and 5 rack positions let you cook multiple dishes at once
  • Top-of-oven broiler lets you cook up meats quickly
  • Self-cleaning function conveniently cleans the oven's interior using high temperatures to burn spills, soil and soot away without a bit of scrubbing
  • Easy Set 355 electronic controls on a digital display let you cook at precise temperatures


Width (in.) 23.9
Depth (in.) 25.2
Width 24 in.
Height (in.) 31.44
Cutout Dimensions See Installation Guide below product description
Depth with Door Open (in.) 46.2
Interior Dimensions 17.75"W x 17"H x 18.75"D
Appliance Features:
Oven Cleaning Method All self-clean
Child Lock Yes
Safety Lock Yes
Power & Performance:
Total Connected Load 3.7 kW @ 240V / 2.8 kW @ 208V
Main Oven Broiler Wattage 3400
Minimum Circuit Rating 20 amps
Convection Wattage 0
Bake Element Wattage 2100
Trim Stainless steel
Color Family Stainless steel
Main Oven Capacity (cu. ft.) 3.3
Weight (lbs.) 97
Weight, Shipping 115
Control Type Electric
Power Source:
Gas or Electric Electric
Oven Door Latch Automatic
Oven Door Handle Curved
Oven Door Style With Window
Overall Type Single oven
Broiler Location Top of oven
Number of Oven Racks 2
Warming Drawer No
Convection Location(s) No Convection
Bake Element Location Above oven floor
Convection Type No Convection
Number of Oven Rack Positions 5
Roasting Radiant
Venting Located between oven door and control panel
Certifications & Ratings:
UL Listed Yes
ADA Compliant No
Light(s) Type Halogen
Light(s) Location Rear
Product Includes:
Power Cord Included No
Racks/Pans Included Yes
Item Type:
Clock Type Digital
