Kenmore 52549 42" Deluxe Range Hood 5254

Kenmore 52549 42" Deluxe Range Hood 5254
Item # 02252549000P Model # 52549

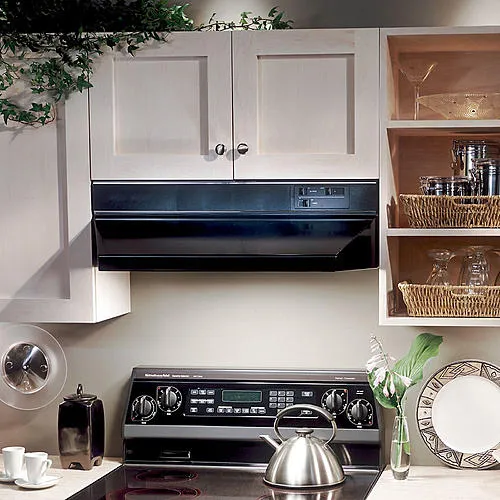

Kenmore 52549 42" Deluxe Range Hood 5254

Kenmore — trusted in the homes of more than 100 million Americans.

Dual, infinite speed internal centrifugal blowers are the air movers that drive this 42 in. deluxe range hood. efficiency is increased by the 9 in. high shell which improves air capture & exhausts.

  • Infinite speed blower control
  • Wall mounted

Specifications

Dimensions:
Overall Width 42 in.
Depth, Chimney 20
Max. Height Above Cooktop 24
Height, Wall Mounted Canopy 9 in.
Min. Height Above Cooktop 18 in.
Duct Size Standard 3-1/4 x 10 in.
Width, Wall Mounted Canopy 42 in.
Depth (In.) 20
Weight, Shipping (Approx.) 36
Maximum Width (In.) 42
Cutout Dimensions See Installation Guide below product description
Product Overview:
General Warranty 1 year
Exhaust Method Ducted & Ductless
Color:
Color Family Black
Materials & Finishes:
Hood Painted steel
Grease Filter Material Aluminum
Overall Material Painted steel
Included with Item:
Accessory Venting Included Damper kit
Setup and Venting:
Installation Under cabinet
General Features:
Power Cord Included Yes
Controls:
Control(s) Location Front
Control Type(s) Slide
Power Source:
Maximum Connected Load 4.5
Ratings 120 volts
Quality Features:
Construction 9 in. high shell improves air capture
Styling:
Visibility Hidden when not in use
Cleanability Seamless design with minimal edges and parts
Design Look Designer
Cutouts:
Clearance, above Cooktop Dash for Compares & Unknowns
Width, Opening 42 in.
Type:
Venting Updraft
Venting:
Ductwork Flexibility 2-way
Ductwork Type Vertical or horizontal
Pollutant Removal Type Externally vented (ducted)
Lights:
Cleanability Lights Open fixture
Number of Lights 2
Settings Cooking light
Light Visibility Recessed, visible only under hood
Light Type Incandescent
Air Flow & Filtration:
Filter Cleaning Dishwasher-Safe
Number of Air Movers Dual
Air Mover(s) Speed Variable speed
Grease Filter Style Removable metal mesh
Air Mover Type(s) Internal centrifugal blower(s)
Sones (Noise Level) Rating 5.5
Cubic Feet per Minute (CFM) 360 CFM-vertical/350 CFM- horizontal
