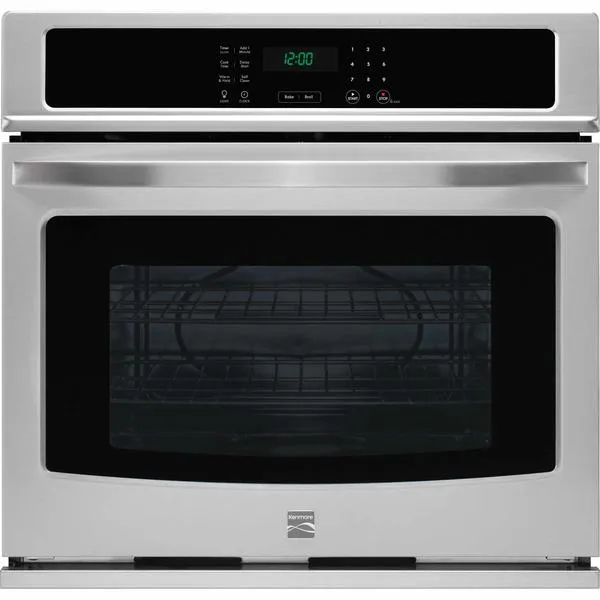

Kenmore 49423 30" Electric Self-Clean Single Wall Oven - Stainless Steel
  • Prod 2167509312
  • Prod 1360093312
  • Spin prod 968387312

Kenmore 49423 30" Electric Self-Clean Single Wall Oven - Stainless Steel

Item # 02249423000P Model # 49423
Buy on Sears.com Find a store

Seamless Style & Convenience

Create hot and delicious meals and treats with the Kenmore electric single wall oven. This self-cleaning oven is designed to add a stylish look to your kitchen with a frameless, flush door. Warm & Hold ensures meals are ready when you are by keeping dishes at the perfect serving temperature for hours without overcooking.

Cook to Perfection

  • Warm & Hold keeps dishes at an ideal serving temperature for hours without overcooking and works with timed bake and delay cook settings
  • The Hidden Bake element delivers ample heat while out of the way, increasing oven capacity and making cleanup easier
  • The variable broiler lets you set the broiler anywhere between 350° and full broil, for a wide range of meats, melts and meals

Built for Convenience

  • A 4.6 cu. ft. capacity gives you plenty of cooking room
  • 2 porcelain-coated oven racks keep foods from sticking and make cleanup fast
  • The Variable Self Clean feature lets you choose the cleaning time from 2-4 hours, saving time and energy when the oven only needs a quick touch-up
  • Simple push-button oven control lockout prevents accidents and temperature tampering by securing settings in an instant
  • Fits flush to the cabinetry for a sleek, stylish built-in look

Feature Highlights

Spin prod 976686712

Meals Ready to Eat

Warm & Hold keeps dishes at the perfect serving temperature for hours without overcooking and works with timed bake and delay cook settings, so meals are ready when you are.

Spin prod 976367612

More Room, Easy Cleaning

The Hidden Bake element delivers ample heat while, out of the way, it increases oven capacity and eases clean-up.

Spin prod 960693212

A Wider Range

The variable broiler lets you set the broiler anywhere between 350 degrees and full broil, for a wide range of meats, melts and meals.

Spin prod 974040912

Room for More

From keeping a stack of pizzas toasty to cooking Thanksgiving dinner, this Kenmore delivers plenty of room, so you can load it up and enjoy hot, delicious meals, treats and more.

Spin prod 976688212

Lock it Up

With the push of a button, the total wall oven lockout feature secures controls and prevents temperature tampering, especially from the smallest fingers in the house.

Spin prod 962305512

Effective Cleaning on Your Schedule

The Variable Self Clean feature lets you choose the cleaning time from 2 to 4 hours, so you can save time and energy when the oven only needs a quick touch-up.

Specifications

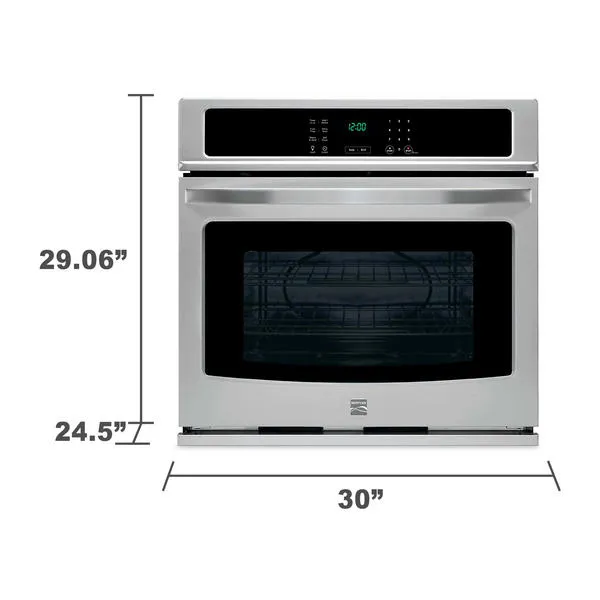

Dimensions:
Width (in.) 30
Depth (in.) 24.50
Width 30 inches
Height (in.) 29.06
Cutout Dimensions See Installation Guide below product description
Door Opening Height (In.) 24.13
Door Opening Width (In.) 16.5
Interior Dimensions 24.13" W x 16.5" H x 18.03" D
Depth with Door Open (in.) 45.5
Power Source:
Gas or Electric Electric
Capacity:
Main Oven Capacity (cu. ft.) 4.6
Controls:
Control Type Electric
Delay Start Yes
Sabbath Mode Yes
Appliance Features:
Oven Cleaning Method All self-clean
Safety:
Child Lock Yes
Safety Lock Yes
Power & Performance:
Total Connected Load 3.4 kW @ 240V / 2.6 kW @ 208V
Main Oven Broiler Wattage 3400
Minimum Circuit Rating 20 amps
Convection Wattage 0
Bake Element Wattage 2750
Weight:
Weight (lbs.) 160
Styling:
Oven Door Latch Automatic
Oven Door Handle Curved
Oven Door Style With Window
Configuration:
Overall Type Single oven
Broiler Location Top of oven
Number of Oven Racks 2
Warming Drawer No
Convection Location(s) No Convection
Bake Element Location Beneath oven floor
Convection Type No Convection
Number of Oven Rack Positions 4
Roasting Radiant
Venting:
Venting Located between oven door and control panel
Certifications & Ratings:
UL Listed Yes
ADA Compliant Yes
Lighting:
Light(s) Type Standard (incandescent)
Light(s) Location Rear
Product Includes:
Power Cord Included Yes
Racks/Pans Included Yes
Color:
Color Family Stainless steel
Item Type:
Clock Type Digital
