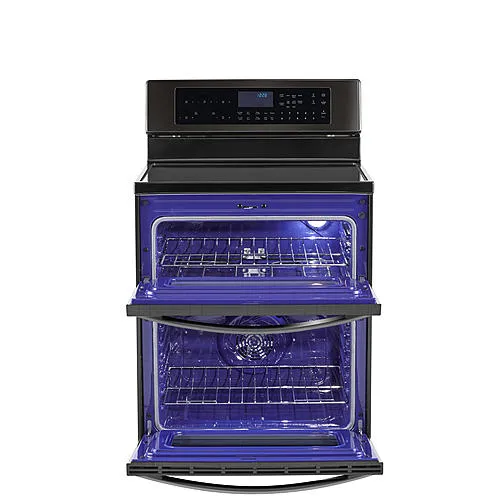

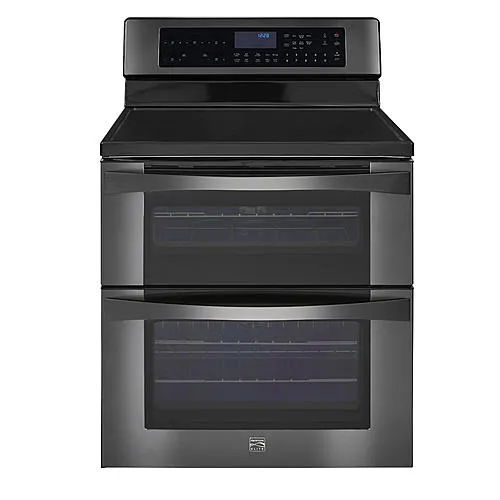

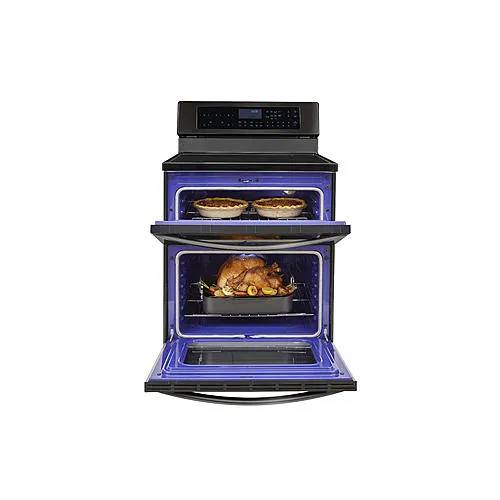

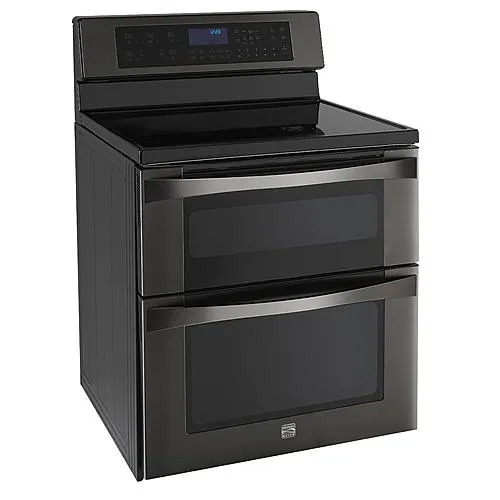

Kenmore Elite 96047  6.7 cu. ft. Double Oven Electric Range w/True Convection Cooking – Black Stainless
  • Prod 12252782212
  • Prod 2335796012
  • Prod 2335796112
  • Prod 2335796212
  • Prod 2335796312
  • Prod 2335796412

Kenmore Elite 96047 6.7 cu. ft. Double Oven Electric Range w/True Convection Cooking – Black Stainless

Item # 02296047000P Model # 96047
Buy on buy on Find a store

Kenmore Elite 96047 6.7 cu. ft. Double Oven Electric Range w/True Convection Cooking - Maximum Cooking Capacity

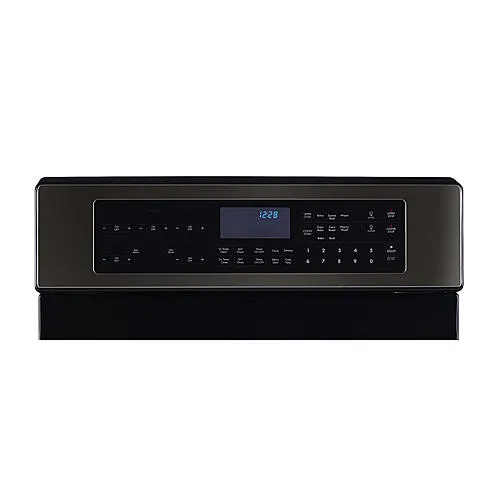

From the appetizer course straight through to dessert, the Kenmore Elite 96047 6.7 cu. ft. Double Oven Electric Range w/True Convection Cooking has you covered when it comes to cooking large meals for your family. Boasting not one, but two spacious ovens and a generous cook top that features five radiant elements, this electric range lets you bake, broil, boil and fry a variety of dishes at once. Electronic touch display controls make it easy to change temperatures and alter your cook settings with the touch of a button. And because this Kenmore Elite range is equipped with Lo Temp Clean technology that cleans your oven in a quick twenty minutes, you'll spend less time tidying in the kitchen and more time enjoying the company of your dinner guests. The black stainless finish is easy to wipe clean, it resists smudges and fingerprints

  • Multitasking Made Easy

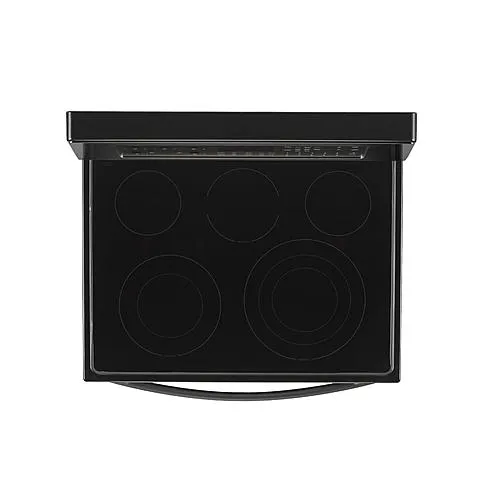

You won't believe the flexibily of this range's cooktop. There is a 3,000W triple element (12"/9"/6") which provides the most flexibility in pan size and a 3,200W dual element (9"/6") which provides the highest output.

  • True Convection Cooking

Combining a powerful fan with a hidden heating element, True Convection Cooking spreads heat evenly throughout the lower oven to help bake, brown and broil all of your tasty culinary creations to perfection. Plus, Convection Roast sears meats and seals in juices for delicious results.

  • Skip Preheating with Speed Broil

Speed Broil uses an infrared element that heats up extremely fast to give you the seared flavor of grilling. And because no preheating is required - your cook time will be even shorter.

  • 20 Minutes to a Whole New Oven

Lo Temp Clean functionality makes your oven sparkle and shine without the use of harsh chemicals or high heat. Simply spray the interior of the oven with water, tap the Lo Temp Clean button, open the oven after 20 minutes and wipe away any grime or debris. The traditional self-clean cycle is available for use as well in the event your oven needs a really deep clean.

  • Sophisticated black stainless steel finish
Black stainless finish is specially designed to be smudge-and fingerprint-resistant, so it stands up to everyday challenges, including busy families and little kids.


Width (in.) 29.88
Depth (In.) 25.82
Height (in.) 47.44
Main Oven Interior Dimensions (WxHxD) 24.5x16.31x18.94
Depth with Door Open (in.) 45
Secondary Oven Interior Dimensions (WxHxD) 24.5 x 8.687 x 18.937
Width 30 in. (standard)
Appliance Features:
Oven Cleaning Method Self-cleaning
Range Style Freestanding Ranges
Power & Performance:
Voltage 220/240V
Main Oven Broiler Wattage 3800
Minimum Circuit Rating 40 amps
Main Oven Bake Element Wattage 2500
Main Oven Convection Element Wattage 2000
Secondary Oven Bake Element Wattage 2100
Secondary Oven Broiler Wattage 3200
Secondary Oven Capacity (cu. ft.) 2.3
Weight (lbs.) 212.5
Weight, Shipping 262.6
Sabbath Mode Yes
Control Type Electric
Number of Ovens Double oven
Bake Element Location Beneath oven floor
Secondary Oven Number of Rack Positions 1
Main Oven Broiler Location Top of oven
Main Oven Number of Rack Positions 5
Number of Oven Racks 3
Number Burners 5
Element Configuration LR 6" 1,200W; RR 6" 1,200W; LF 9"/6" 3,200W/1,400W; RF 12"/9"/6" 3,000W/2,200W/1,100W; C 7" 100W
Convection Location(s) Lower
Convection Type Fan w/ Additional Element or Burner
Cooking Surface Electric
Certifications & Ratings:
ADA Compliant No
ANSI Certified No
Secondary Oven Light Standard (incandescent)
Oven Light Standard (incandescent)
Oven Door Window Type Standard
Item Type:
Oven Type Convection
Clock Type Digital
Product Includes:
Power Cord Included No
Color Family Black Stainless
