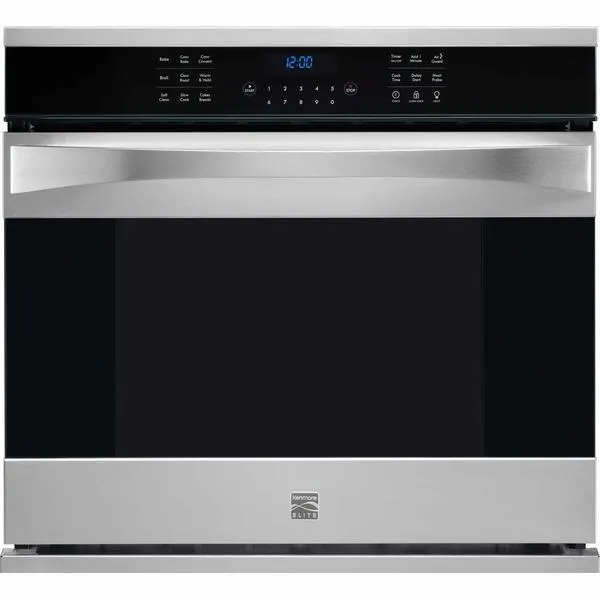

Kenmore Elite 48363  30" Electric Single Wall Oven - Stainless Steel
  • Prod 2247185012
  • Spin prod 1122157312
  • Spin prod 1100978912
  • Spin prod 1122157412

Kenmore Elite 48363 30" Electric Single Wall Oven - Stainless Steel

Item # 02248363000P Model # 48363
Buy on Sears.com Find a store

The Kenmore Elite 30" Electric Single Wall Oven has a convenient self-cleaning feature. Its flush-to-cabinet design lends a stylish, built-in look to your kitchen. Enjoy the many features this oven boasts, such as the Warm & Hold feature that keeps foods warm until you're ready to serve them, and the lockout feature that is activated by the simple push of a button.

  • Flush-to-cabinet design maintains a sleek and stylish built-in look
  • 5.1 cu. ft. capacity ensures room for cooking multiple dishes
  • True Convection with third element (2,500W) and auto convection conversion make baking easier
  • Variable speed convection cooking ensures even results
  • True Hidden Bake element delivers ample heat while, out of the way, it increases oven capacity and eases clean-up
  • Flex Clean self-cleaning oven cleans in 2 to 4 hours
  • Two heavy-duty porcelain-coated, self-clean oven racks with integrated handles and one glide rack
  • The variable broiler lets you set the broiler for a wide range of meats, melts and meals
  • Warm & Hold keeps dishes at the perfect serving temperature for hours without overcooking and works with timed bake and delay cook settings, so meals are ready when you are
  • Simple push-button oven control lockout prevents accidents and temperature tampering by securing settings in an instant, perfect when little ones are around
  • Delay cook and clean lets you work around your busy schedule for added convenience
  • Two halogen interior oven lights let you check the status of your food at a glance
  • AirGuard

Feature Highlights

Prod 1366516612

An Even Finish All Around

True Convection combines a powerful fan with a hidden heating element to spread heat evenly, helping bake, brown and crisp everything from turkeys and roasts to brownies and pies.

Prod 1366516912

More Room, Easy Cleaning

The Hidden Bake element delivers ample heat while, out of the way, it increases oven capacity and eases clean-up.

Prod 1366516712

Meals Ready to Eat

Warm & Hold keeps dishes at the perfect serving temperature for hours without overcooking and works with timed bake and delay cook settings, so meals are ready when you are.

Prod 1366516812

Safety at Your Fingertips

Designed to prevent temperature tampering and accidents, control lockout and auto cooktop shutoff secures controls quickly and remembers to turn elements off when you don't.

Prod 1366516512

Meals Ready When You Walk In

The delay cooking option uses a timer to start the oven on your schedule, so you can load it up with an entree before heading out, and come home to a piping hot meal.

Specifications

Dimensions:
Width (in.) 30
Depth (in.) 24.5
Width 30 inches
Height (in.) 29
Cutout Dimensions See Installation Guide below Product Description
Door Opening Height (In.) 18.25
Door Opening Width (In.) 30
Interior Dimensions 24.125"W x 18.625"H x 19.5"D
Depth with Door Open (in.) 45.5
Power Source:
Gas or Electric Electric
Capacity:
Main Oven Capacity (cu. ft.) 5.1
Controls:
Control Type Electric
Delay Start Yes
Sabbath Mode Yes
Appliance Features:
Oven Cleaning Method All self-clean
Safety:
Safety Lock Yes
Power & Performance:
Total Connected Load 3.4 kW @ 240V / 2.6 kW @ 208V
Main Oven Broiler Wattage 4000
Minimum Circuit Rating 20 amps
Convection Wattage 2000
Bake Element Wattage 2200
Weight:
Weight (lbs.) 130
Weight, Shipping 150
Styling:
Oven Door Latch Manual
Oven Door Handle Curved
Oven Door Style With Window
Configuration:
Overall Type Single oven
Broiler Location Top of oven
Warming Drawer No
Convection Location(s) Upper/Single Oven
Bake Element Location Beneath oven floor
Number of Oven Rack Positions 6
Roasting Convection
Convection Type Fan w/ Additional Element or Burner
Venting:
Venting Under the control panel
Lighting:
Light(s) Type Halogen
Light(s) Location Rear
Product Includes:
Power Cord Included Yes
Color:
Trim Stainless steel
Color Family Stainless steel
Certifications & Ratings:
ADA Compliant Yes
Item Type:
Clock Type Digital
