Kenmore Elite 31113  30" Gas Downdraft Cooktop - Stainless Steel
  • Prod 12126204712
  • Prod 1360066312
  • Prod 1960264412
  • Prod 1960281712

Kenmore Elite 31113 30" Gas Downdraft Cooktop - Stainless Steel

Item # 02231113000P Model # 31113
Buy on Find a store

Fire Up Great Meals

The Kenmore Elite gas downdraft cooktop gives you the versatility and cooking power you need to put delicious meals on the table. 4 gas burners and a continuous cast iron grate give you plenty of flexibility throughout the cooktop, so you can simmer soups, sear steaks and fry up fish with less fuss. Use the Turbo Boil burner to quickly heat up huge pots of water or soup while the simmer burner gives you low-heat precision for more delicate dishes. Put great meals on the table with the Kenmore Elite gas cooktop.

Cook Your Way

  • 4 burners give your plenty of cooking flexibility
  • Continuous cast-iron grate lets you move pots & pans around without hassle
  • A 5,000 BTU Simmer Burner keeps sauces & soups warm for the table & melts butter with finesse
  • An 18,200 gas Turbo Boil burner delivers serious power to get water boiling & pans hotter fast

Keep Clean-Up Simple

  • Cooktop grates are dishwasher safe for easy clean-up
  • Recessed design helps contain spills & splatters while giving you a smarter space to cook on
  • Downdraft ventilation system with hidden fans keeps stinky odors from hanging around the kitchen

Feature Highlights

Spin prod 962852712

High Heat Control

The 18,000 BTU gas Turbo Boil burner gives you more control over your stove, so you can boil faster and sear with precision.

Spin prod 962852612

Low, Low Heat

The 5,000 BTU Simmer Burner lets you simmer soups and sauces, melt butters without burning and keep foods nice and warm until meal time.

Spin prod 962852512

Airflow at Your Speed

From frying bacon to sautéing cloves of garlic, a 3-speed fan delivers ventilation with up to 525 CFM of airflow, clearing the air fast or slow at your discretion.

Measure Twice, Order Once

What’s more annoying than not having a great appliance? Having to re-order the correct size. Make sure this appliance will fit in your home.

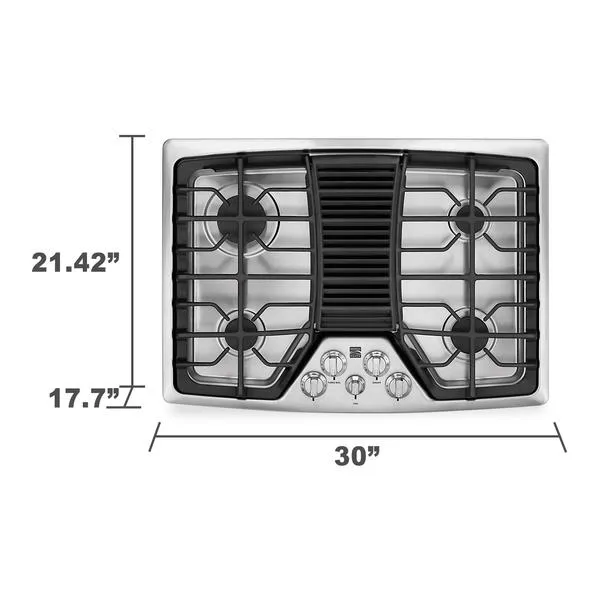

Width (in.) 30
Minimum Clearance Below Cooktop (in.) 9
Minimum Clearance to Left Wall (in.) 9
Minimum Clearance to Right Wall (in.) 7
Minimum Clearance to Rear Wall (in.) 2.75
Depth (In.) 21.42
Height (In.) 17.7
Cutout Dimensions 19.125 in. H x 28 in. W
Minimum Clearance Above Cooktop (in.) 30
Minimum Clearance to Front of Counter (in.) 2.25
Width 30 inches
Power Source:
Gas or Electric Gas
Safety/In-Use Indicator No Indicators
Materials & Finishes:
Frame Stainless steel
Surface Stainless steel
Item Weight (lbs.) 74
Cooktop Control Location Front
Cooktop Control Type Electro-mechanical
Cooking Surface Gas
Number Burners 4
Installable Over Oven Cannot install over oven
Cooking Zones None, fixed elements/burners

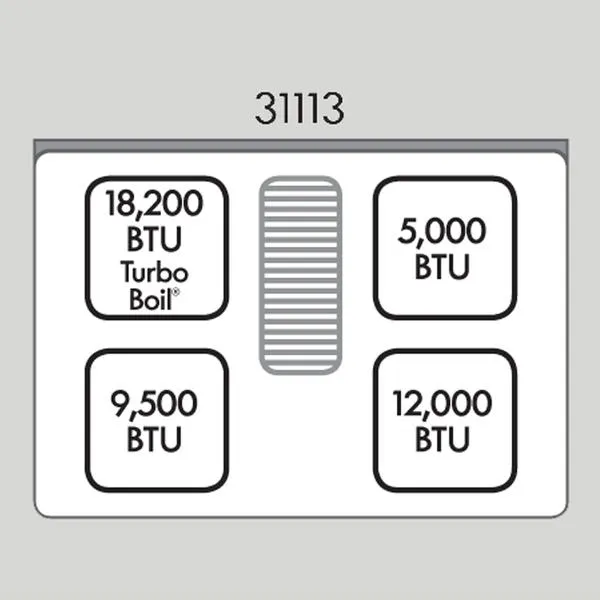

Burner Configuration 18,200 BTU nat., 12,000 BTU nat., 9,500 BTU nat., 5,000 BTU nat.
Venting System Yes
Certifications & Ratings:
ENERGY STAR Compliant No
UL Listed Yes
ADA Compliant No
NSF Listed No
Product Includes:
Power Cord Included Yes
Color Family Stainless steel
Color Matching Controls Yes
Cooking Bay Style Fixed Bays
Accessories Available Trim Kit Sold Separately Part # 5304488403
